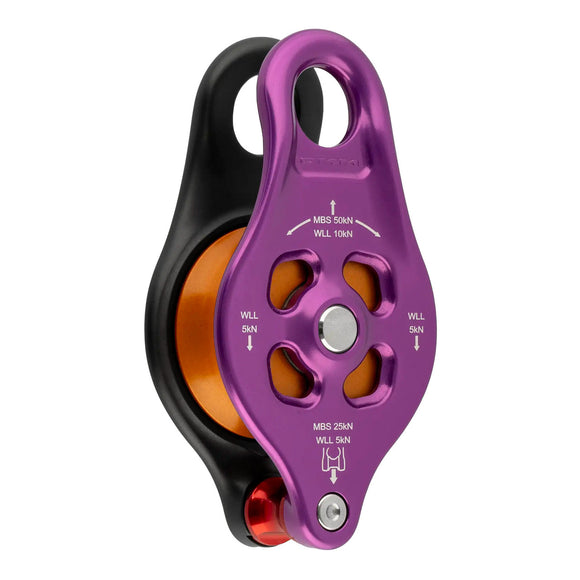

DMM Pinto 2 Rig Pulley
Not just a makeover, the Pinto Rig 2 retains the compact and lightweight design of the original. Enhanced with efficient ball bearings, it performs all functions better than ever. The significant size upgrade makes the Pinto Rig 2 more suitable for rigging scenarios.
The recessed sheave design creates a smooth rope channel, ensuring that your rope or tagline never snags and always feeds smoothly from various angles.
FEATURES
- Full strength attachments at eye and becket provide a wide range of rigging options.
- Fixed side plate design is easy to clip into and load onto tensioned ropes.
- Hot forged and robust, featuring smooth rope and textile-friendly fairleads and edges.
- Connect directly with textile components for added versatility: increase lift height, minimize space, or enhance torsion tolerance.
- Recessed sheave design helps rope feed smoothly from all angles.
- Sealed ball bearings for high efficiency and low maintenance.
- Optional spacer available separately for use with rope connection.
- Tamperproof construction.
- Made in Wales, certified for peace of mind.
TECH SPECS
- MBS: 50 kN (25 kN Becket)
- WLL: 10 kN (5 kN Becket)
- Dimensions: 115 x 60 x 37 mm
- Weight: 222 g
- Rope Diameter: 16 mm Max
- Certification: EN12278:2007
