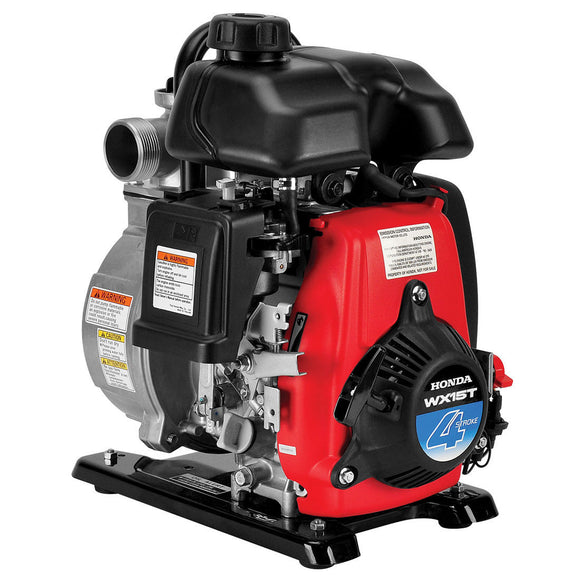

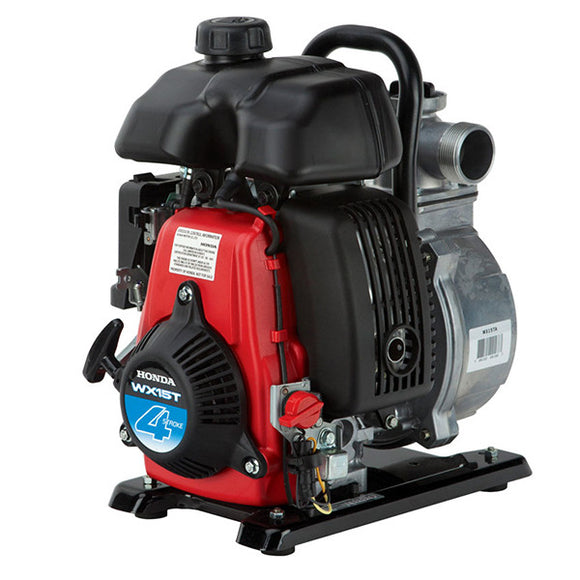

Honda WX15 1.5" Water Pump
Honda WX15 Water Pump: Exceptional Efficiency in a Compact Design
The WX15 is designed to meet the needs of homeowners, gardeners, and boat enthusiasts with its perfect blend of power and ease of transport for all your water pumping requirements.
- Robust Honda GX Engine: A reliable, commercial-grade engine that delivers significant power for heavy-duty jobs.
- Rapid Water Movement: Capable of pumping up to 74 gallons per minute for quick and effective water transfer.
- Compact and Easy to Carry: Weighing only 20 lbs, this pump is highly portable and easy to handle.
- User-Friendly Design: Features effortless starting and a practical transport handle for simplified operation.
- Included Accessories: Comes equipped with essential hose clamps and a strainer.
- Engine Safety Features: Honda Oil Alert® ensures protection against engine damage from low oil levels.
Technical Specifications
- Model: WX15TA
- Engine Type: Honda GXH50
- Engine Displacement: 49cc
- Bore and Stroke: 1.65" x 1.42"
- Compression Ratio: 8.0:1
- Oil Alert System: Standard
- Pump Design: General purpose centrifugal, self-priming
- Material: Aluminum volute and impeller
- Mechanical Seal: Carbon/Ceramic
- Priming Time: 120 seconds at 16.4 ft.
- Drive Mechanism: Direct
- Discharge Rate: 74 gallons per minute
- Suction Port Size: 1.5" NPT
- Discharge Port Size: 1.5" NPT
- Total Head Lift: 121 FT
- Suction Head Lift: 26 FT
- Maximum Pressure: 52 psi
- Dimensions (L x W x H): 14.0"x10.8"x14.8"
- Dry Weight: 20 lbs.
- Fuel Capacity: 0.20 qt
- Run Time at Max Discharge: 0.9 hours
- Strainer Part Number: 78325-YB0-751
- Residential Warranty: 2 years
- Commercial Warranty: 1 year
WARNING: California Prop 65 Information
Pump Performance Data
