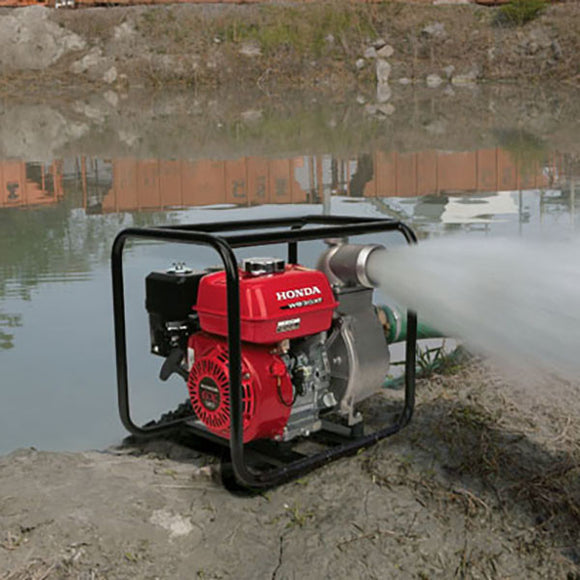

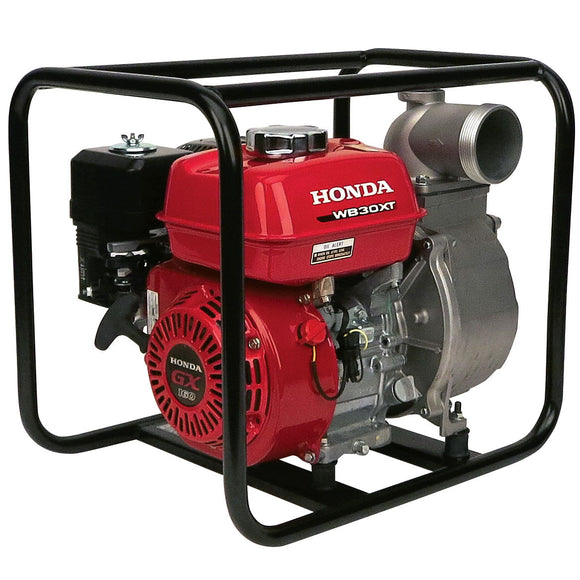

Honda WB30 3" Water Pump
Honda WB30 Water Pump: Dependable and Durable
The Honda WB30 is engineered to perform well in challenging conditions. Its robust design and practical features make it suitable for a wide range of uses.
- Powerful Start: The Honda OHV commercial engine ensures effortless starting and powerful performance.
- Long-Lasting Materials: Constructed with silicon carbide seals and a robust cast iron volute for durability.
- High Efficiency: Equipped with Honda's 4-vane impeller for optimal water flow.
- Stable Operation: Vibration isolation mounts enhance stability across different surfaces.
- Robust Protection: A sturdy full frame safeguards the pump and includes a tie-down point.
- Clog-Resistant: Features a large strainer that permits solids up to 5/16 inch to pass.
- Engine Protection: Honda's Oil Alert® system prevents engine damage from low oil levels.
Specifications
- Model: WB30XT3A
- Engine: Honda GX160
- Displacement: 163cc
- Bore and Stroke: 2.7" x 1.8"
- Compression Ratio: 9.0:1
- Oil Alert: Standard
- Pump Type: Centrifugal, Self-priming
- Volute Material: Rigid Mounted Cast Iron
- Impeller: 4 Vane Cast Iron
- Mechanical Seal: Silicon Carbide/Silicon Carbide
- Priming Time: 150 seconds at 16.4 ft.
- Drive System: Direct
- Discharge Capacity: 290 gallons/minute
- Suction Port Diameter: 3" NPT
- Discharge Port Diameter: 3" NPT
- Total Head Lift: 85 FT
- Suction Head Lift: 25 FT
- Maximum Pressure: 37 PSI
- Dimensions: 20.1" x 15.2" x 17.9"
- Dry Weight: 57 lbs.
- Fuel Capacity: 0.82 Gallons
- Runtime at Max Discharge: 1.9 hours
- Strainer Part Number: 78325-YG4-000
- Residential Warranty: 2 years
- Commercial Warranty: 1 year
WARNING: California Prop 65 Information
Pump Performance
